    Wi-Fi Expansion Pack Accessories!

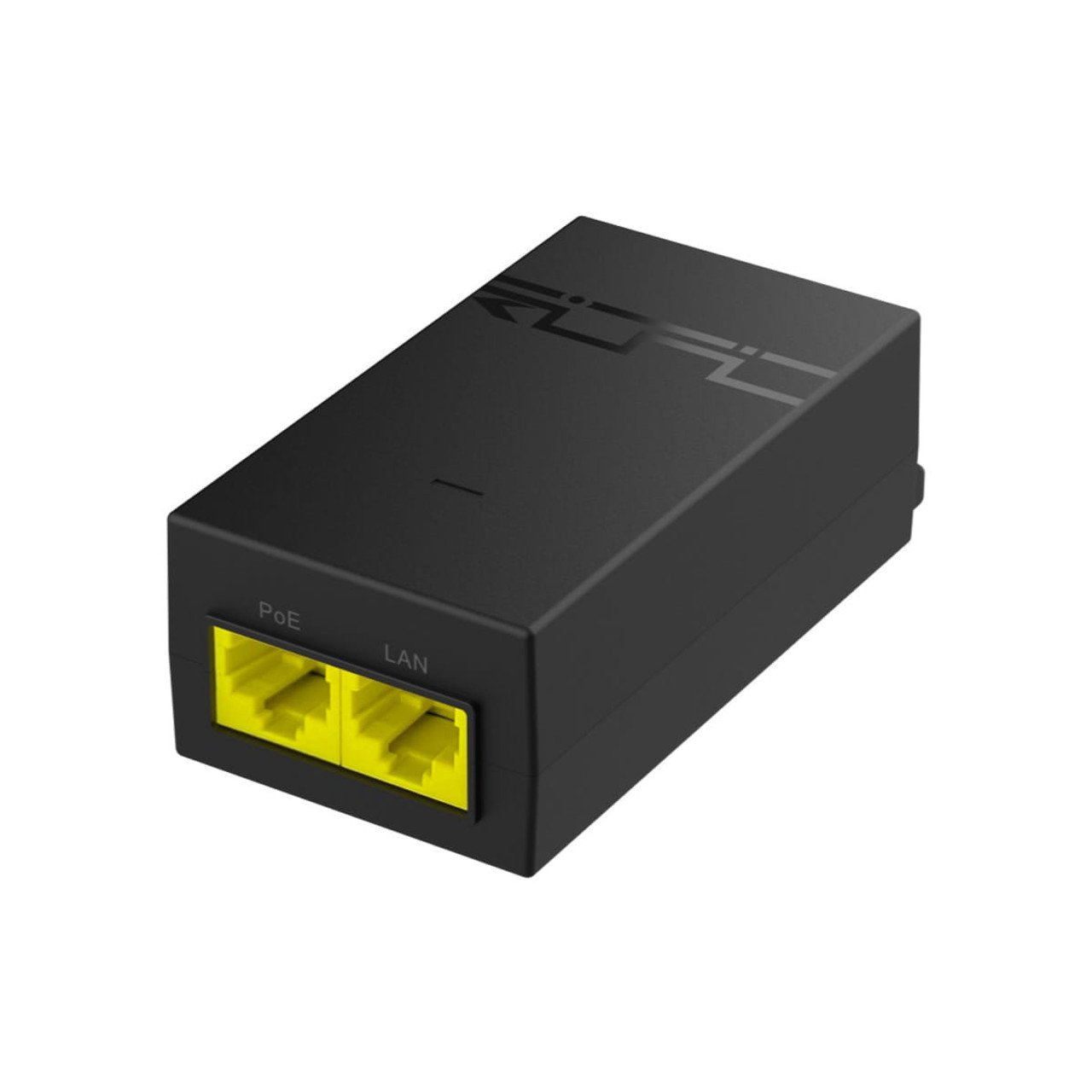

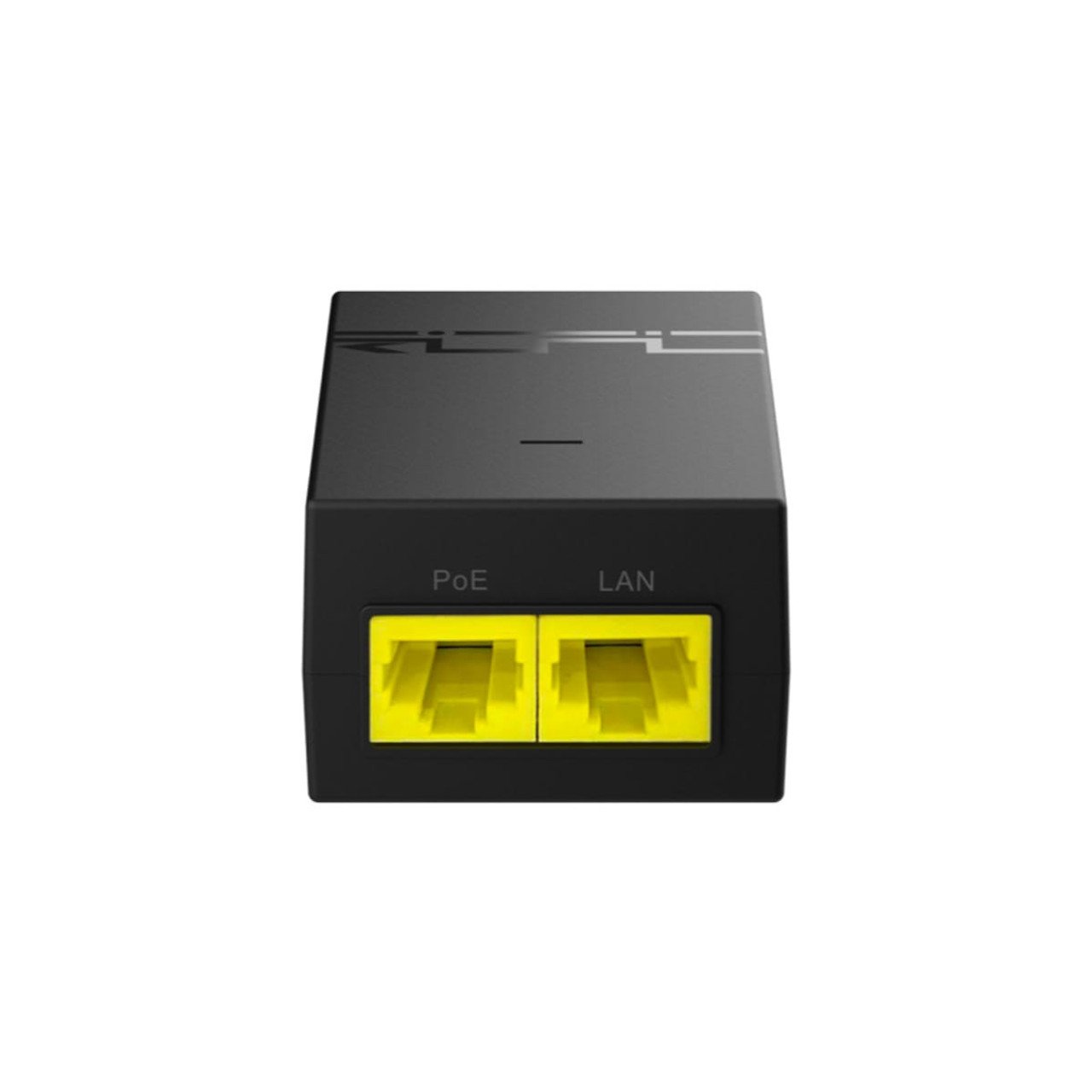

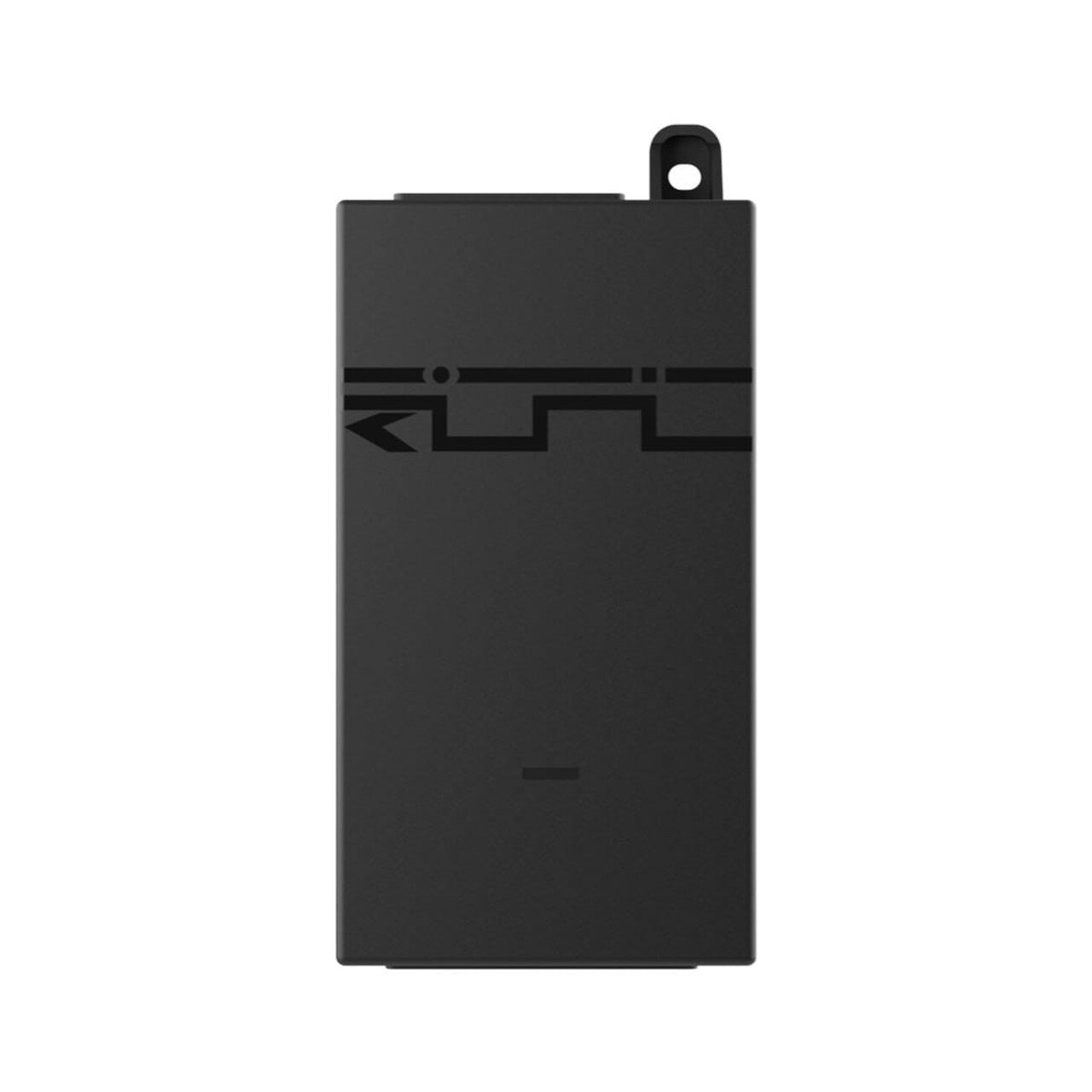

    1-port Passive PoE adapter (1Gbps, 52V, 15.6W)

    A 1-port passive PoE adapter delivering 15.6W power and 1Gbps data. It supports a wide temperature range and provides surge protection.


    Cost

    NZD $51.87 incl. GST

    • Connect with us

    Key Features

    Camera icon 1

    Broad Temperature Range for Versatile Use

    Wireless load bars 1

    Surge Protection for Enhanced Durability

    CX vehicle 3

    Compact and Lightweight Design

    celfi indoor 3 (1)

    Efficient Power Input and Output

    5-port PoE 2

    Flexible Compatibility with Devices

    Product Details & Specifications

    Specifications

    • Output voltage of 52V DC at 0.3A for efficient power delivery.
    • 100-240V AC at 50/60 Hz rated voltage.
    • Inrush current under 80A at 230V AC for safety.
    • 2000A (8/20 µs) max. discharge current.
    • Passive PoE standard.
    • 15.6W power output.
    • 2-pair powering using pins 4,5 (+) and pins 7,8 (-).

    Broad Temperature Range for Versatile Use

    Designed to withstand diverse environmental conditions, the RG-POE-AF15 operates effectively within a wide temperature range of -10 °C to +45 °C. This makes it suitable for use in various indoor and outdoor environments, including offices, retail businesses, and industrial spaces. The adapter’s ability to function across such a broad range of temperatures ensures that it remains reliable in both warmer and cooler climates.

    Surge Protection for Enhanced Durability

    The RG-POE-AF15 features strong surge protection, ensuring that your devices remain protected even in the event of electrical surges. With a maximum discharge current of 2000 A (8/20 µs), it helps safeguard connected devices from potential power fluctuations, reducing the risk of damage and extending the lifespan of your equipment.

    Compact and Lightweight Design

    Measuring just 92 x 46.5 x 29.5 mm and weighing only 95g, the RG-POE-AF15 is compact and lightweight, making it easy to install in tight spaces without taking up much room. Its small form factor is perfect for deployments where space is limited, but reliable power delivery is still crucial, such as on ceiling mounts or in compact server rooms.

    Efficient Power Input and Output

    The RG-POE-AF15 operates with an input of 100-240V AC at 50/60Hz, and an output of 52V DC at 0.3A. The power consumption is minimal, drawing a maximum input current of just 0.5A. This efficient design ensures that it provides reliable power to devices while consuming minimal electricity, helping businesses save on energy costs over time.

    Flexible Compatibility with Devices

    This PoE adapter is compatible with a range of devices that require passive PoE, including access points, IP cameras, and other network equipment. It uses a 2-pair powering system with Pins 4,5(+) and Pins 7,8(-) to deliver power, making it versatile for various networking applications. This wide compatibility ensures that you can use the RG-POE-AF15 with numerous devices without issues.
